Small leaftlet palletising robot

Let your machine experts focus on what they do best. Leave the rest to Kerberos-KF!

Talk to an Expert

What is Kerberos-KF?

Kerberos-KF collects leaflets, inserts or outserts directly from the folding machine into stacks and places them into paper trays. Whether these should then go to boxes or on a pallet is only up to You.

Kerberos-KF

  • can be adapted to your needs
  • can handle a wide range of sizes
  • is flexible and mobile

Key features

  • Wide range of leaflet and tray sizes
  • Automatic pallet pattern calculation
  • Customisable
  • Quality sample collection
  • Careful leaflet handling
  • Delivery unit included in Kerberos-KF2
  • Optional turning module

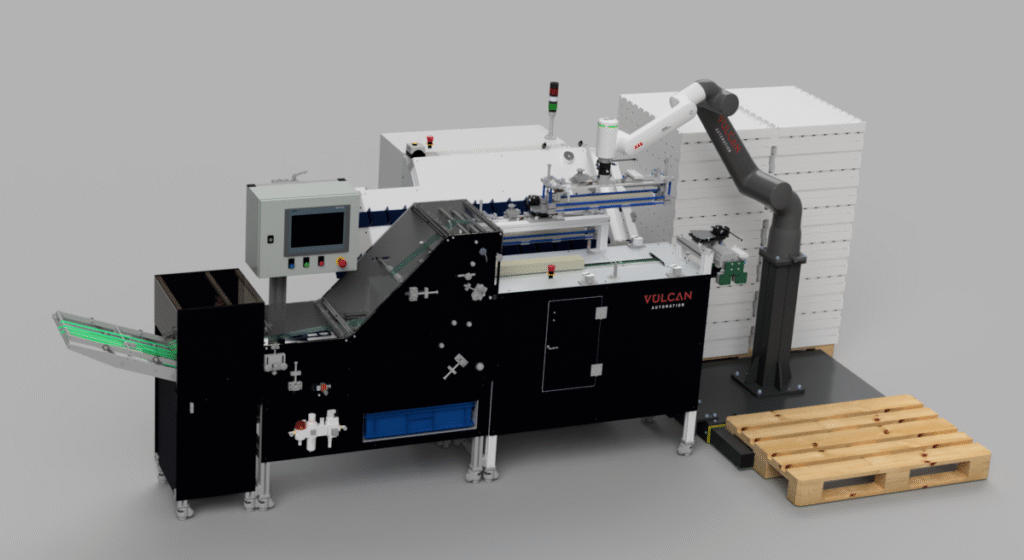

Insert packaging robot

Tailored to Your needs

As a machine builder we have endless possibilities to customise Kerberos-KF to Your operations.

  • It can place trays into boxes or on a pallet
  • It can talk to your MES system.
  • We can adjust any dimension or parameter you like.
  • We can customise the HMI to show what is most important to Your operators. In Your language.
  • A turning module can turn leaflets upside-down when needed
  • Visual inspection using camera can be added

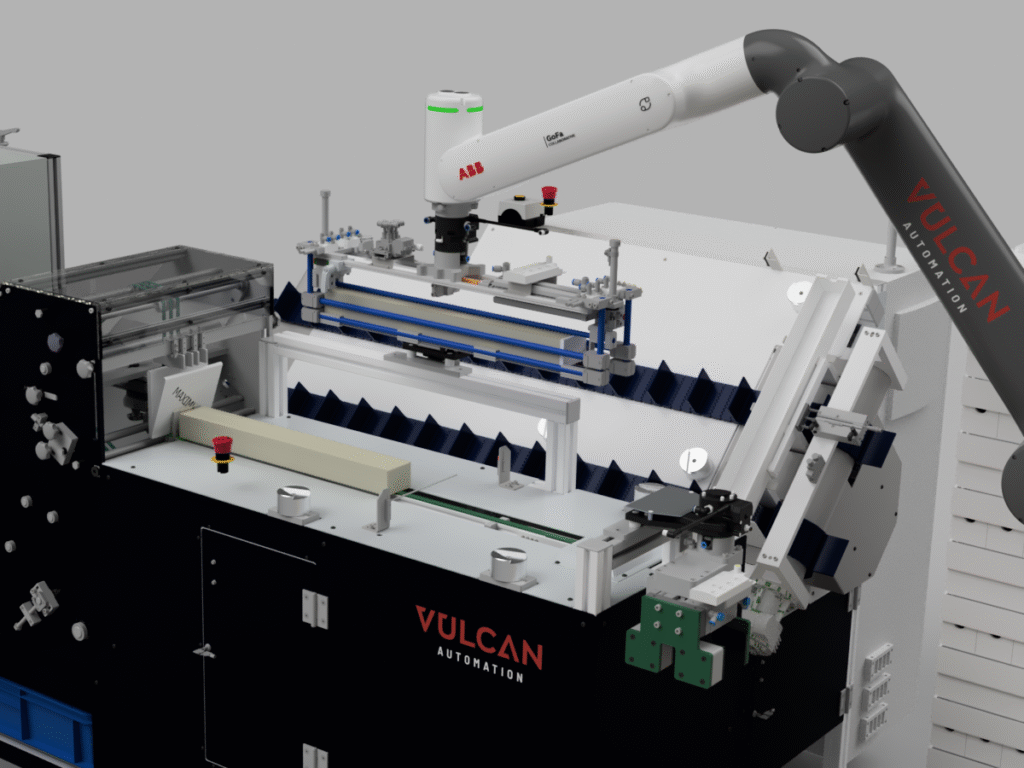

Insert handling robot

Technical specifications

Max speed 6.500 leaflet/hour, 100 tray/hour
Leaflet sizes min. 45x22x0,9mm, max. 165x148x10mm
Customisable upon request
Tray sizes min. 48x300x20mm, max. 168x600x98mm
Customisable upon request
Paper stack weight max. 3kg
Customisable upon request
Pallet sizes Freely customisable
Pallet patterns Predefined patterns or automatic pattern optimisation
Pallet height 1400mm without lifting column
Customisable upon request
