HMI for Palletizing

User friendly graphical interface designed to streamline palletizing robot applications.

Talk to an Expert

What is HMI for Palletizing?

A palletizing robot application automates the process of stacking and organizing products onto pallets efficiently and safely. Our HMI makes palletizing robot programming easy and more simple.

HMI for Palletizing

  • User friendly graphical user interface
  • For virtually any robot
  • Picking and placing logic stays on robot controller

Key features

  • Possibility to interface with client’s MES
  • Remote support option by Vulcan Automation
  • Slip sheet handling
  • Pick-up, placement position adjustable on screen
  • Can be set to any layer

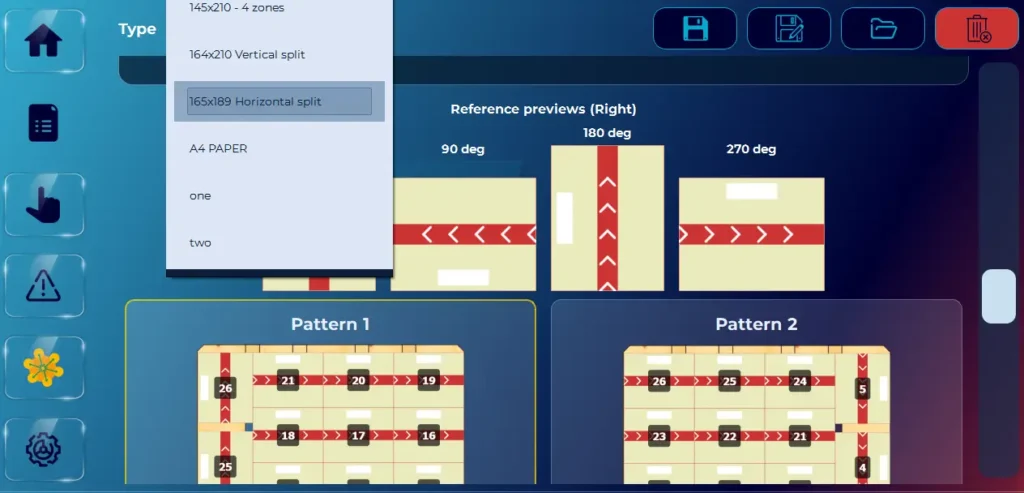

  • Recipe handling: All parameters and patterns can be saved and loaded
  • Operator and Admin levels. (Operator view can be customised.)
  • Any lifting column can be used

Supported Pallets

  • 2 pallet places
  • 1 or 2 input conveyors

Freely adjustable pallet sizes

  • 800×1200
  • 1200×800
  • 1000×1200
  • Or whatever is needed

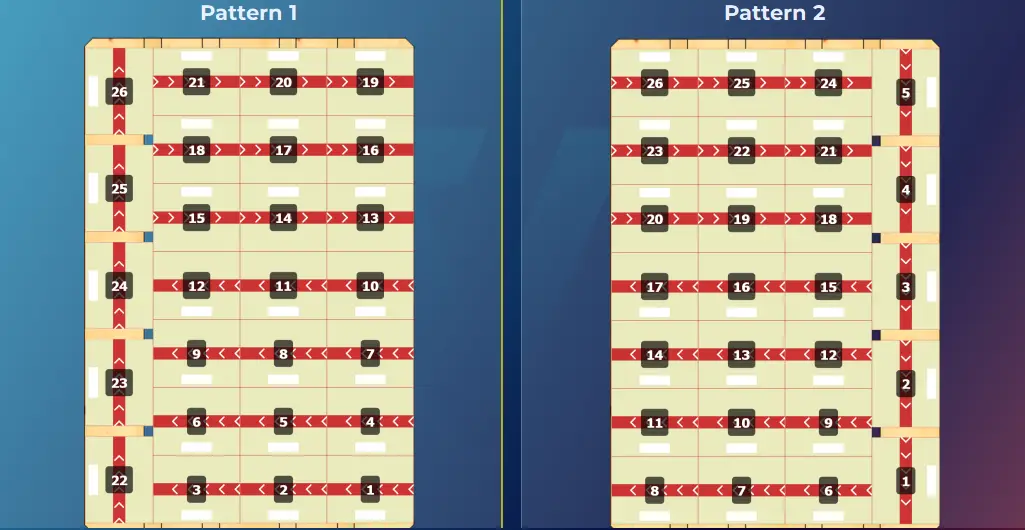

Palletizing Patterns

Automatic pallet pattern optimisation

  • Box width x length
  • Min. gap between boxes
  • Overhang outside of pallet
  • Enforcing overlaps possible
  • Labels out function
  • Automatic pattern mirroring for stable overlaps
  • Manual pattern editing
  • Easily add, delete, move and rotate boxes

Custom Gripping

Any gripper with custom

  • Position offsets
  • Tool IO labels on HMI

Any gripping method

  • You can program it freely on the robot controller – the HMI just instructs the robot to grip
