HMI for Palletizing
User friendly graphical interface designed to streamline palletizing robot applications.
What is HMI for Palletizing?
A palletizing robot application automates the process of stacking and organizing products onto pallets efficiently and safely. Our HMI makes palletizing robot programming easy and more simple.

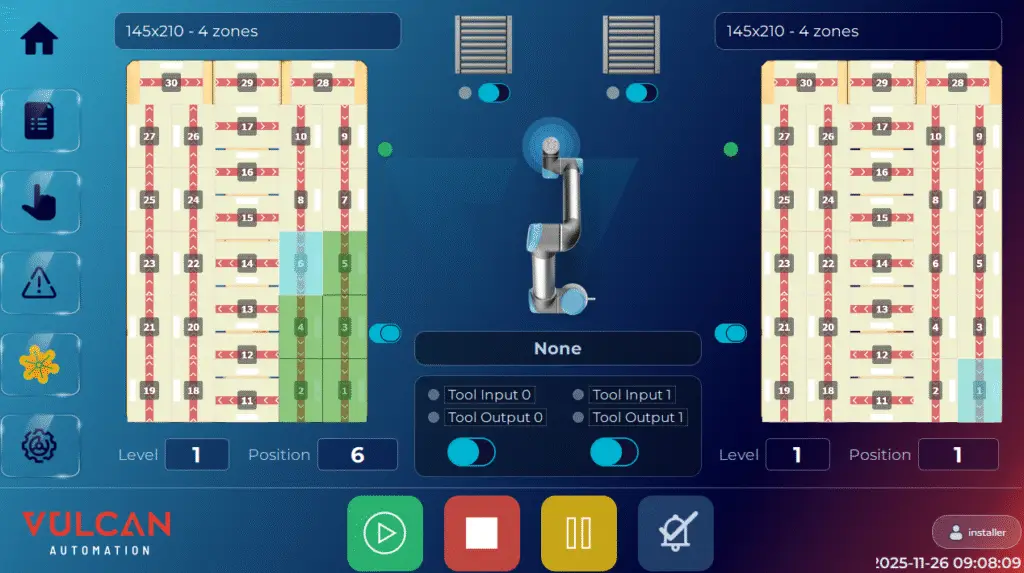

HMI for Palletizing
- User friendly graphical user interface
- For virtually any robot
- Picking and placing logic stays on robot controller
Key features
- Possibility to interface with client’s MES
- Remote support option by Vulcan Automation
- Slip sheet handling
- Pick-up, placement position adjustable on screen
- Can be set to any layer

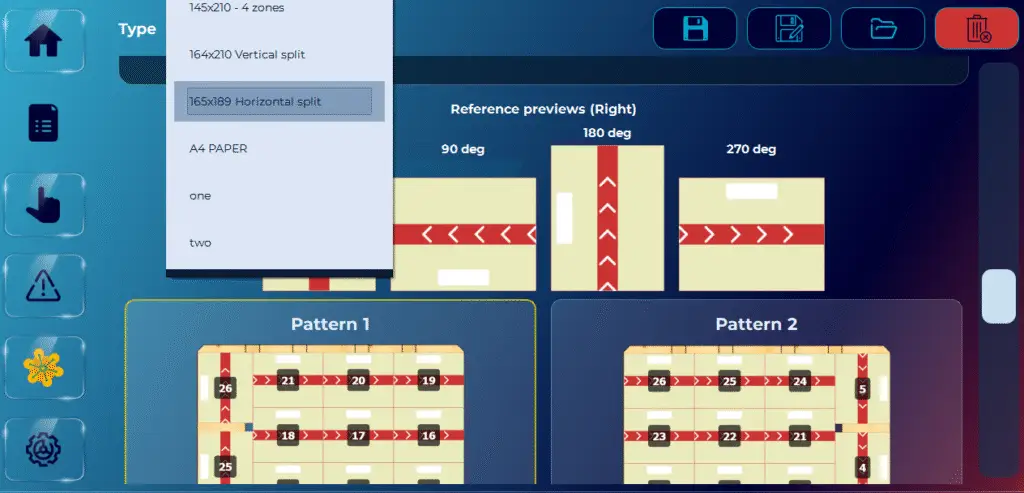

- Recipe handling: All parameters and patterns can be saved and loaded
- Operator and Admin levels. (Operator view can be customised.)
- Any lifting column can be used

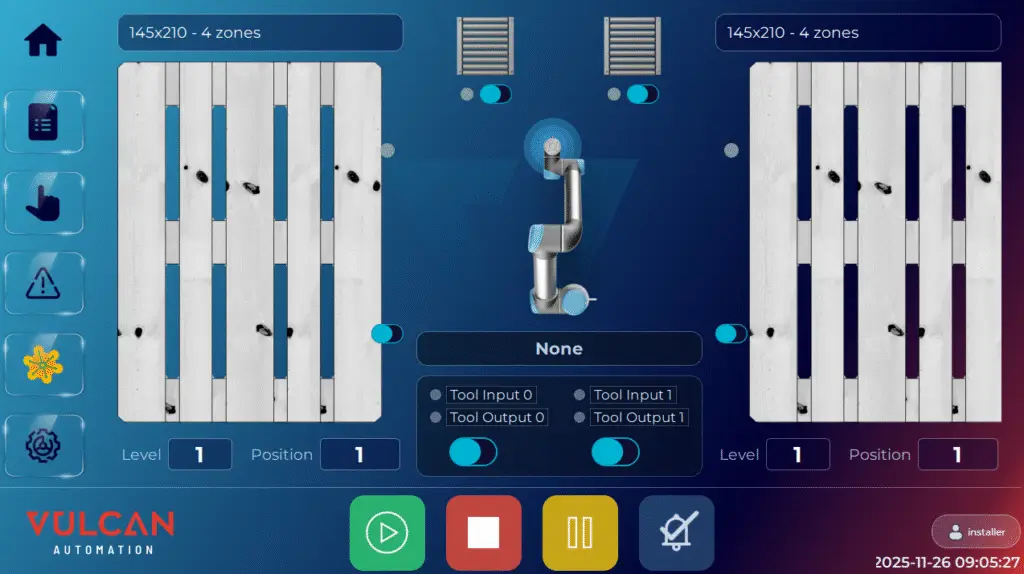

Supported Pallets
- 2 pallet places
- 1 or 2 input conveyors
Freely adjustable pallet sizes
- 800×1200
- 1200×800
- 1000×1200
- Or whatever is needed

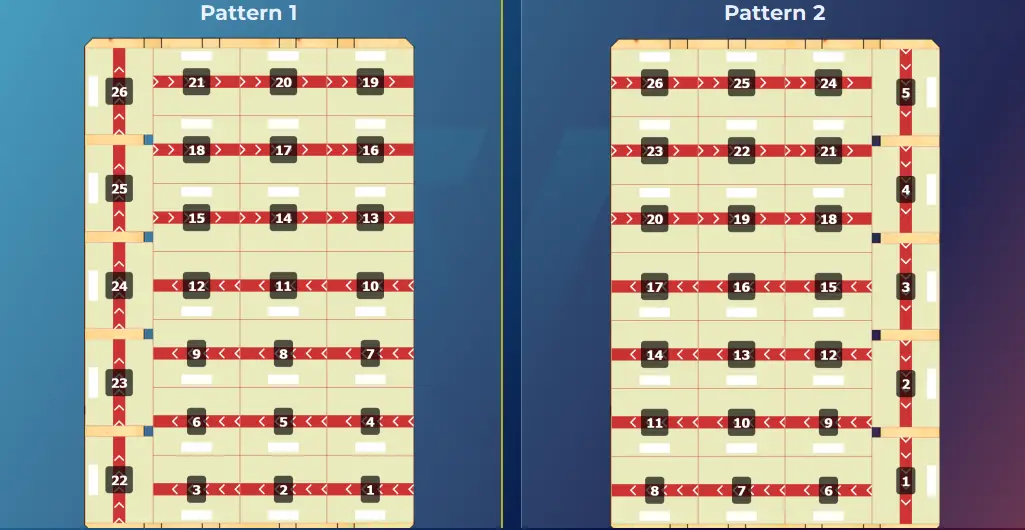

Palletizing Patterns
Automatic pallet pattern optimisation
- Box width x length
- Min. gap between boxes
- Overhang outside of pallet
- Enforcing overlaps possible
- Labels out function
- Automatic pattern mirroring for stable overlaps
- Manual pattern editing
- Easily add, delete, move and rotate boxes

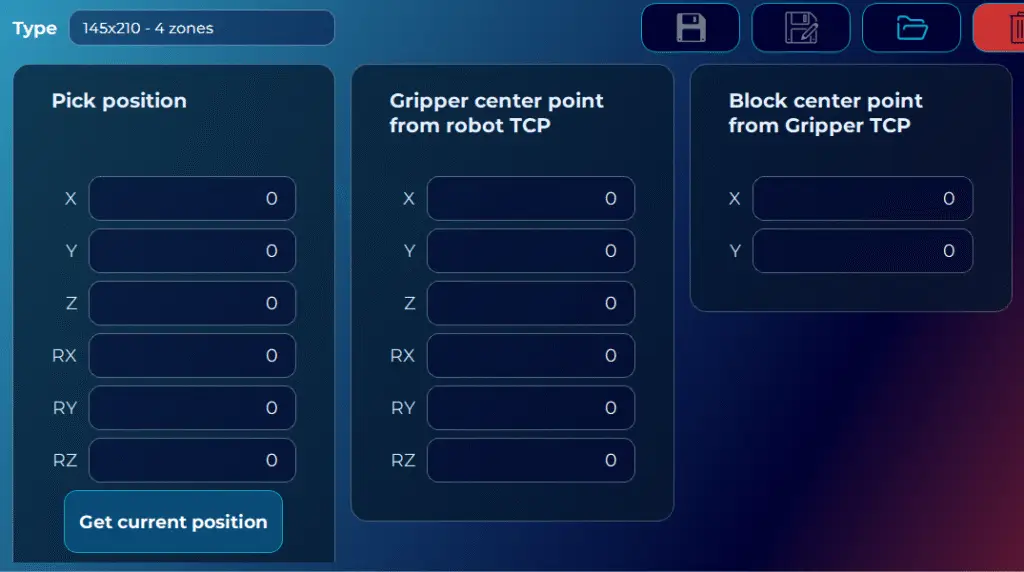

Custom Gripping
Any gripper with custom
- Position offsets
- Tool IO labels on HMI
Any gripping method
- You can program it freely on the robot controller – the HMI just instructs the robot to grip
